Product Details
＋
Product Overview

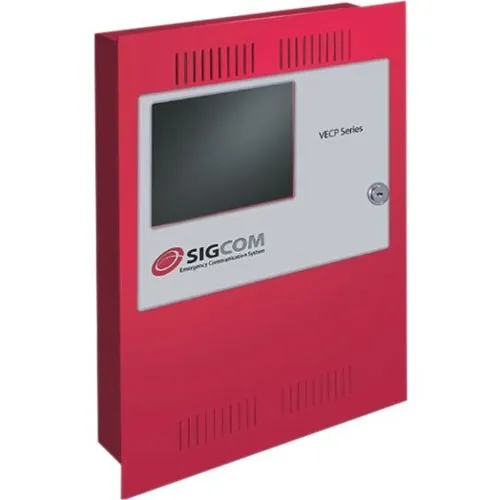

Sigcom's VECP Series includes the VECP-25 and VECP-50 voice evacuation control panels and the DVS-RM remote microphones. The VECP-25 provides 25 Watts of output power. The VECP-50 provides 50 Watts of output power. Both VECP controls have a built-in digital message unit, UL listed power supply, and a supervised microphone. The digital message unit includes 2 voice messages and 4 field selectable alert tones. VECP control panels provide four Class A or Class B supervised speaker circuits which are configurable for either 25 or 70.7Vrms speaker loop voltage.
Main Features
- Connects to any FACP
- High efficiency Class D digital amplifier
- Activated with 24 VDC polarity reversing NAC circuit or dry-contact
- 60 seconds of pre-recorded digital voice message
- 4 alert tones and 2 standard voice messages with field selectable options
- 4 supervised speaker loop outputs (Class A or B)
- Field selectable 25/70 Vrms speaker loops
- Integral supervised microphone
- Optional Remote microphone - supervised
- Dead Front locked Cabinet
General Information
Name: SigCom VECP-50 Voice Evacuation System, Industrial Paging Control Panel, 50W, 4 Speaker Circuits with Digital Message, Microphone and Power Supply, Signal Communications Corporation, Signal Communication
Category: Signal Communication, Fire, Voice Evacuation Systems
UPC Code: 999999387651
