DS18 6PRO360NSL-8 PRO 6.5” Shallow Midrange Speaker with Neodymium Magnet, 6.5-inch Midrange Speakers 360W Max Power, 8 Ohm, Slim Mount, Pro Car Audio Stereo Mid-Range - 2 Speaker
Powerful Performance: DS18's 6PRO360NSL-8, with its 180W RMS (360W MAX) and 8 OHMS, ensures accurate audio reproduction. Its slim shallow design adds versatility for high-performance audio in tight spaces.
Crystal-Clear Sound - With a remarkable 103dB sensitivity, this midrange speaker guarantees crystal-clear sound even at high volumes. Say goodbye to distortion and hello to an immersive audio experience that keeps the music loud and clear, making your listening sessions truly enjoyable
Precision Engineering - The speaker boasts an Interleaved Sandwich Voice Coil (ISV) and improved heat dissipation, allowing it to handle the most demanding audio setups effortlessly. The curvilinear cone shape plays a significant role in the exceptional sound reproduction, showcasing the meticulous engineering behind DS18's design
Premium Build - Crafted with premium materials, including a fiberglass voice coil, aluminum winding material, and a neodymium magnet weighing 11.7 Oz, the 6PRO360NSL-8 is built to last. The sleek black die-cast aluminum basket with outer support rings adds a touch of elegance, ensuring both durability and show-quality performance
Easy Installation - Designed for convenience, the push speaker terminals (12ga) make installation a breeze, ensuring a secure and seamless connection. DS18's commitment to user-friendly design simplifies the process, allowing you to unlock the true potential of your audio system effortlessly
Technical Data
Nominal Diameter: 6.5" / 165mm
Nominal Impedance: 8 Ohms
RMS Power Handling: 180W
MAX Power Handling: 360W
Sensitivity (1w/1m): 103dB
Frequency Response: 100Hz-10KHz
Recommended HI Pass Crossover: 120Hz
Sold in Pair or Single: Single
Grill Included: No
Features:
Interleaved Sandwich Voice coil (ISV): Yes
Demodulating Rings: No
Improved Heat Dissipation: Yes
Cone Shape: Curvilinear
Speaker Terminals: Push (12ga)
Motor:
Voice Coil Diameter: 1.78" / 45mm
Voice Coil Former Material: Fiberglass
Winding Material: Aluminum
Cone Material: Non-Pressed Paper
Dust Cap Material: Cloth
Bullet Material: N/A
Bullet Color/Finish: N/A
Surround Material: Cloth
Basket Material: Die-Cast Aluminum
Basket Color/Finish: Black
Magnet Material: Neodymium
Magnet Weight: 11.7 Oz
Displacement Volume: Not specified
Thiele & Small Parameters:
Equivalent Volume Vas: 11.54L / 0.4ft3
Excursion (one way) Xmax: 2.5mm
Free Air Resonance Fs: 125Hz
Mechanical Factor Qms: 8.76
Electrical Factor Qes: 0.53
Total Factor Qts: 0.5
Mechanical Mass Mms: 4.68g
Mechanical Compliance Cms: 0.34 mm/N
BL Factor BL: 6.53
Voice Coil Inductance Le: 0.68mH
Cone Area Sd: 153.94 Cm2
DC Resistance Re: 5.9 Ohms
Mechanical Mass w/o air Mmd: Not specified

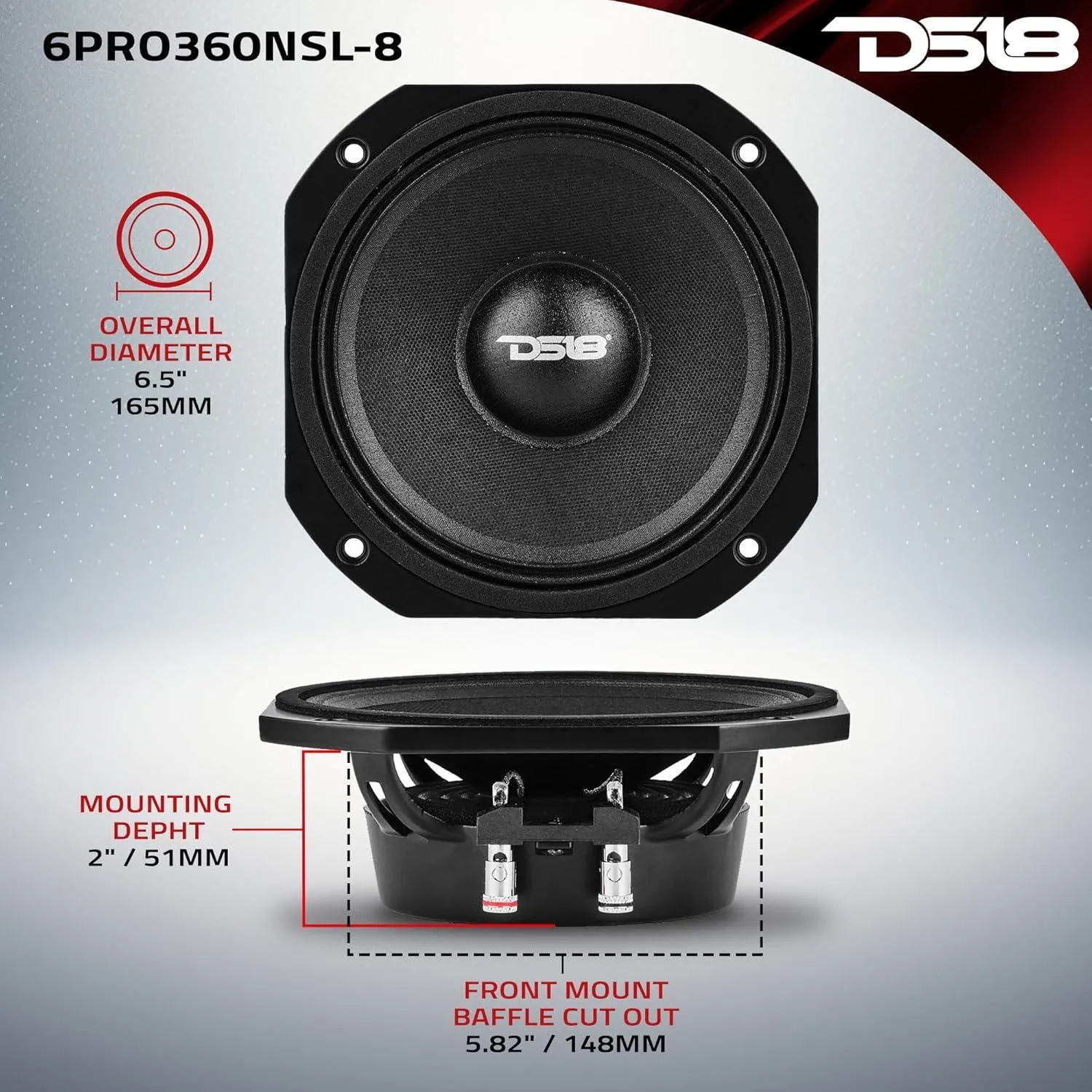

Measurement:
Overall Diameter: 6.38" / 162mm
Overall Depth: 2.44" / 62mm
Front Mount Baffle Cutout: 5.82" / 148mm
Mounting Depth: 2" / 51mm
Motor Diameter: 3.74" / 95mm
